Overview
Mars Max
LP625EG1, LP625EG2, LP625EG3, LP625EG4, LP625EG5, LP625EG6, LP625EG7, LP625EG8, LP625EG9, LP625EG10, LP625SG1, LP625SG2, LP625SG3, LP625SG4

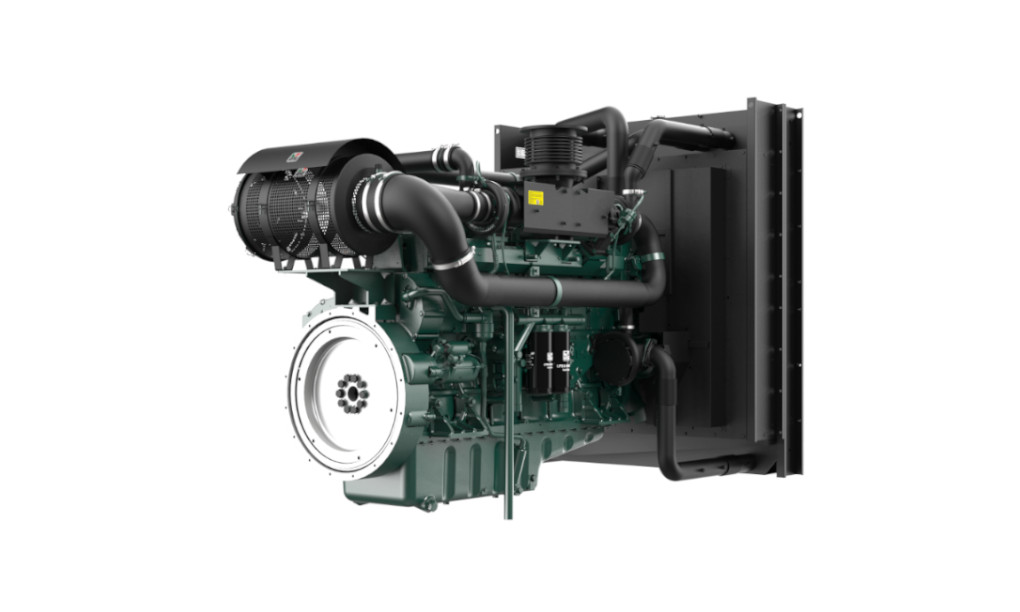

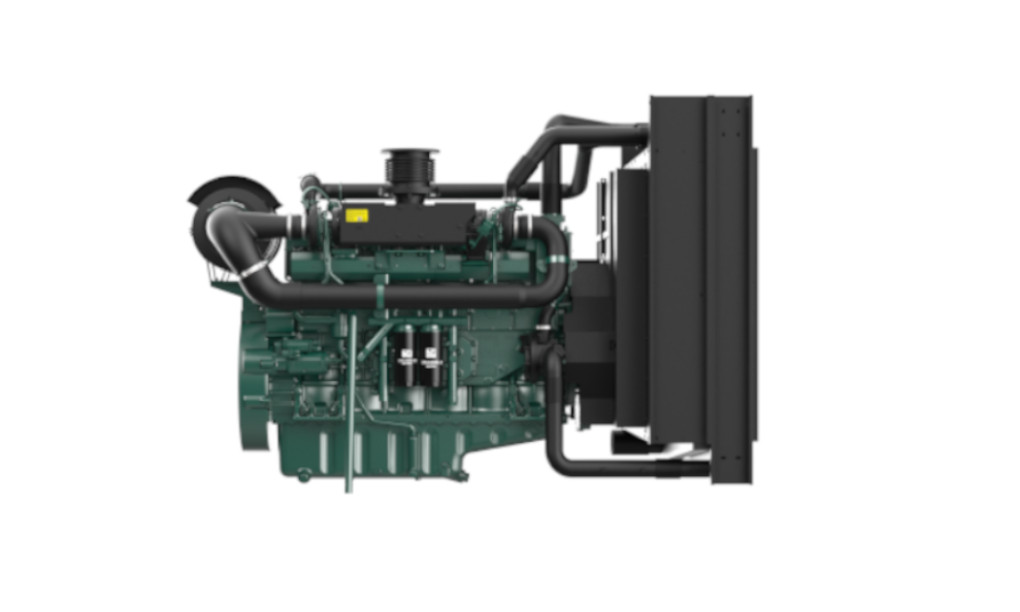

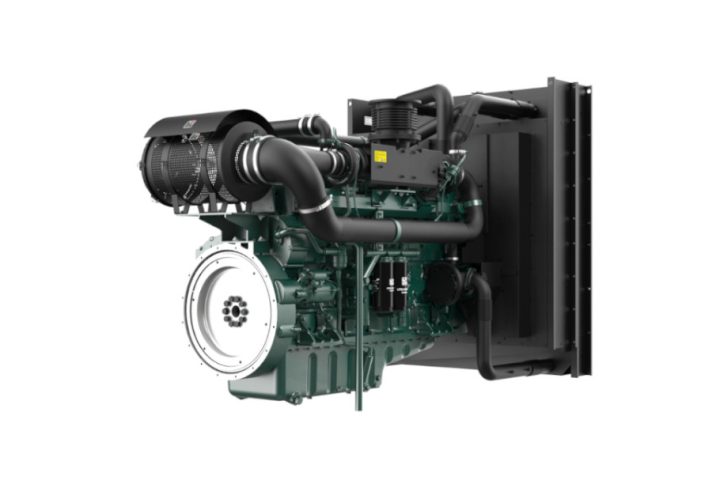

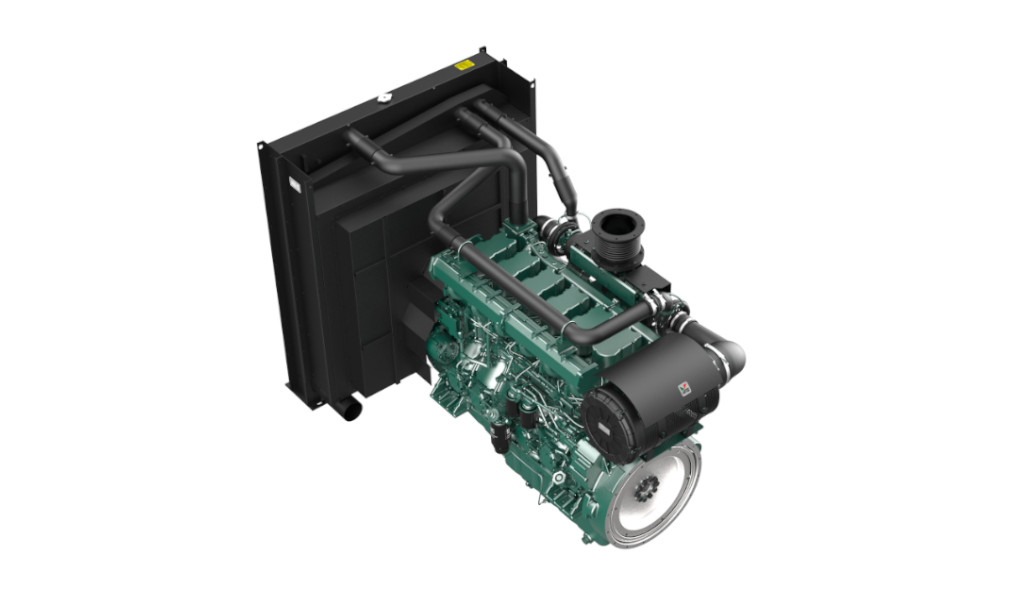

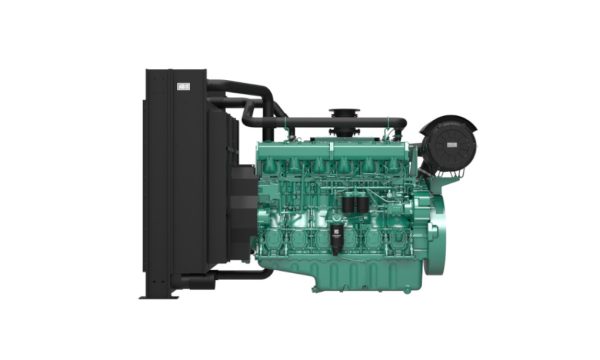

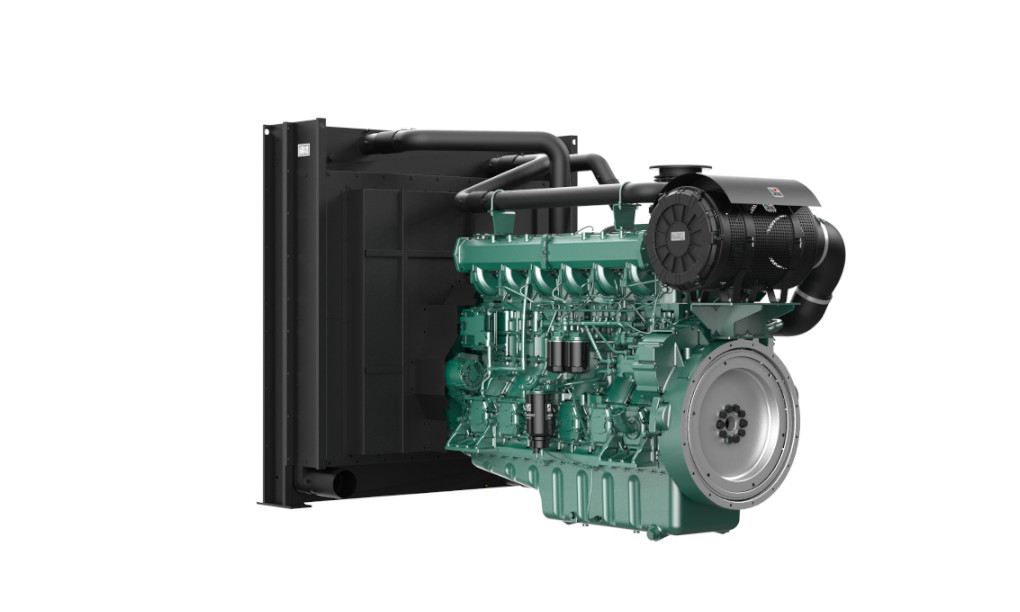

The six-cylinder MARS MAX series produce power in the 460kW to 800kW range at either 1500. These series-turbocharged engines feature a compact single air cleaner making overall height only 1659mm. Liebherr common rail fuel injection system, and ECU delivers class leading power.
Series-turbocharging allows high altitude operation at up to 5000m, with no more than a 30% derate when above 4500m
Can operate at temperatures down to minus 35ºC
Takes one step loads of up to 500kW
Fuel and emissions efficient electronic high voltage common rail injection
500 Hour service intervals (depending on working conditions)
Low single air cleaner to help reduce package size.
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 6 L |
| Bore | 170 mm |
| Stroke | 185 mm |
| Displacement | 25.18 litres |
| Injection | Liebherr Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-5-3-6-4-2 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 2900 kg |
| Length | 2635 mm |
| Width | 1608 mm |
| Height | 1936 mm |
