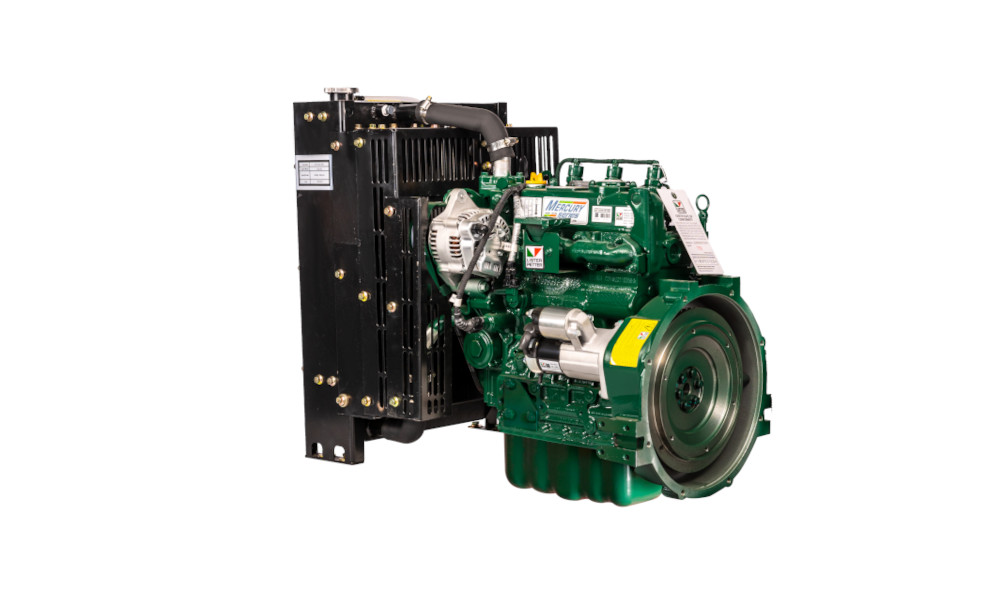

LP311EG1 diesel generator
Discover the LP311EG1 diesel generator from Lister Petter’s MERCURY MAX series. With a maximum power output of 15kW and Stage V emissions compliance, this compact 3-cylinder generator offers exceptional performance. Its common rail fuel system and ECU ensure fuel efficiency and low maintenance, while the high-temp radiator makes it suitable for up to 50ºC ambient temperatures
Lister Petter LP311EG1 diesel generator Overview
The MERCURY MAX series, with ratings from 11 kW to 62kW available in 1500rpm and 1800rpm. This is the first of the Stage V compliant engines in the range for Lister Petter. The engine uses a Bosch common rail fuel injection equipment and ECU to control fuel delivery and to achieve Stage V emissions compliance. The 3-cylinder 1.1 litre engine offers exceptional power in a compact package.
Fixed Speeds
1500 r/min
Maximum Power
1500 r/min—12kW
Injection
ECU
Vertical injection, common rail fuel system
High-temp capability radiator for use in ambient temperatures up to 50ºC
Compact design with standard SAE connection
Cost effective: low cost, fuel efficient, low maintenance with full global spares back up from Lister Petter service outlets worldwide
Lister Petter LP311EG1 diesel generator Specs
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 3L |
| Bore | 78 mm |
| Stroke | 78.4 mm |
| Displacement | 1.1 litres |
| Injection | BOSCH Common Rail with ECU |
| Aspiration | Natural |
| Starting | Electric |
| Firing Order | 1-3-2 |
| Compression Ratio | 18.0 : 1 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 130 kg |
| Length | 810 mm |
| Width | 470 mm |
| Height | 708 mm |
See More Mercury Max Range
