LP689EG2 Engine
Power your operations efficiently with the LP689EG2 generator from Venus Max. Ranging from 78kW to 308kW, it boasts a Denso high-pressure common rail fuel system, ensuring optimal performance and compliance with Stage III emission regulations. With features like switchable dual frequency, low maintenance, and dependable cold starting, this generator is ideal for various applications.

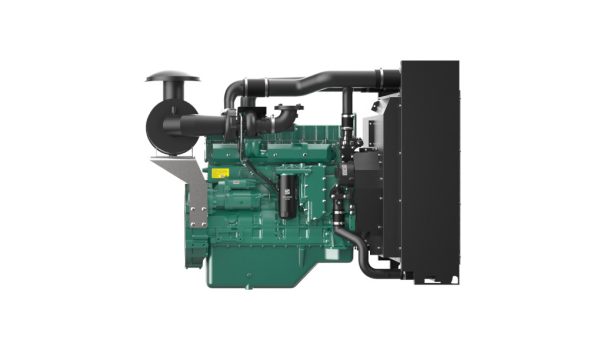

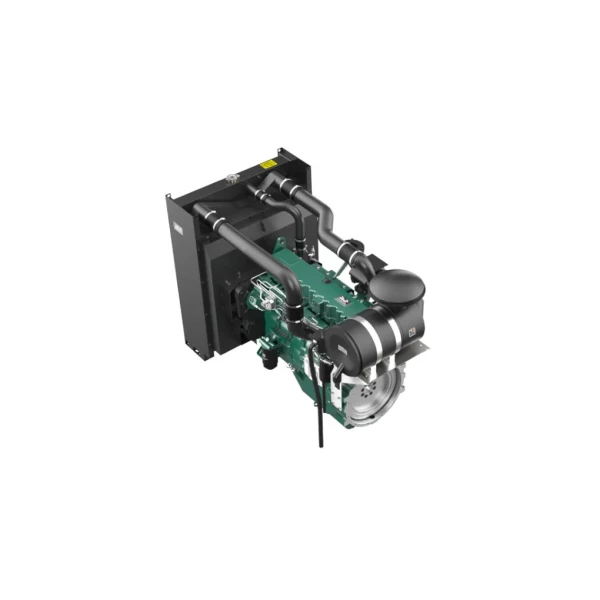

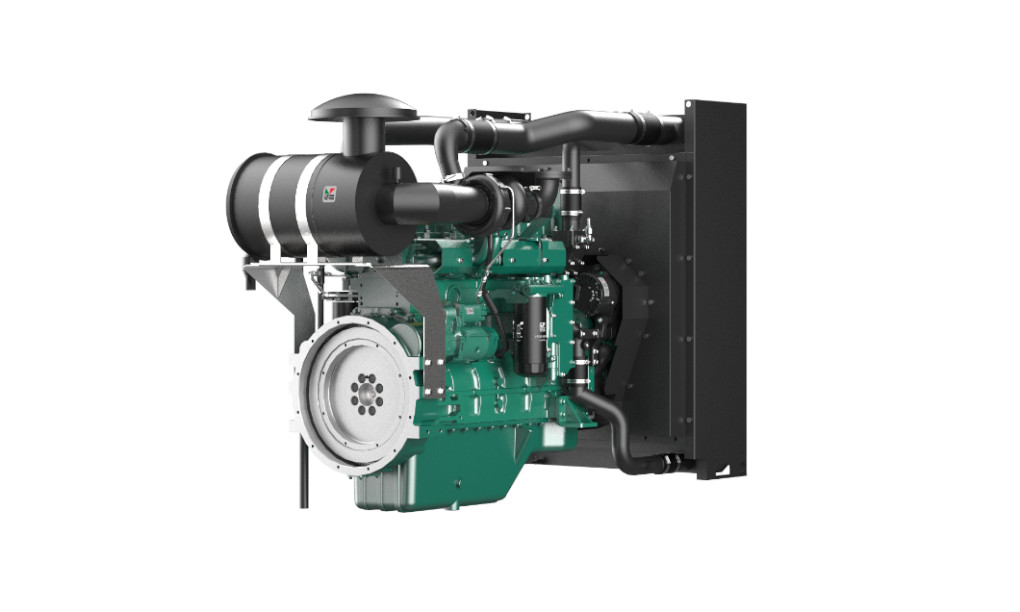

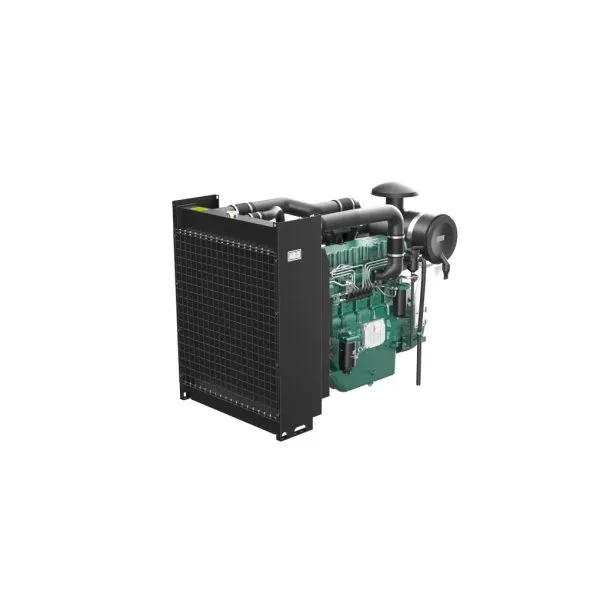

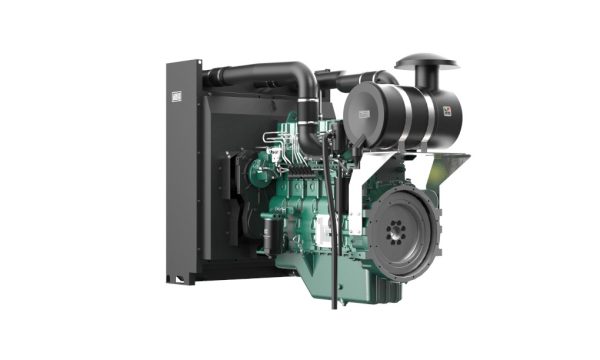

Venus Max LP689EG2 Engine Overview
The VENUS MAX engines produce power in the 78kW to 308kW range. The robust and versatile engine offers Denso high-pressure common rail fuel injection with ECU control. High flow oil filters, and cyclone air filter system ensure the engine is always in prime condition. The Venus Max range complies with Stage III emission regulations.
Switchable dual-frequency of 1500 – 78kW – 308kW Denso fuel system.
Low maintenance – 20,000 hours between overhauls
Dependable – high strength cast iron block, easy cold starting down to minus 40ºC, at altitudes up to 4500m
Denso ECU-controlled common rail injection
Turbocharged, air-to-air intercooler.
Venus Max LP689EG2 Engine Spec
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 6 L |
| Bore | 114 mm |
| Stroke | 114 mm |
| Displacement | 8.9 litres |
| Injection | Denso Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-5-3-6-4-2 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 850 kg |
| Length | 1748 mm |
| Width | 951 mm |
| Height | 1225 mm |
