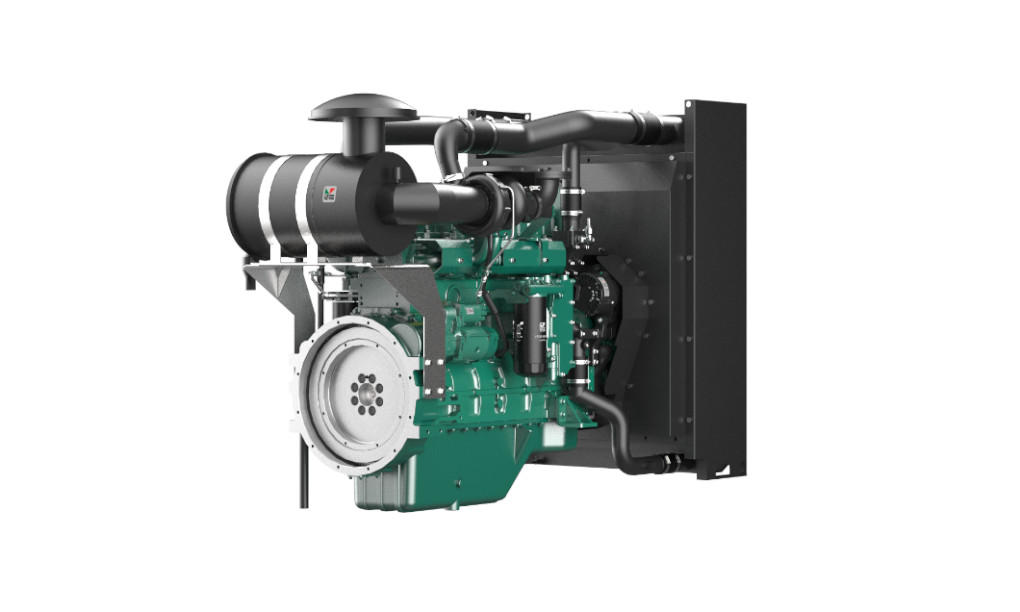

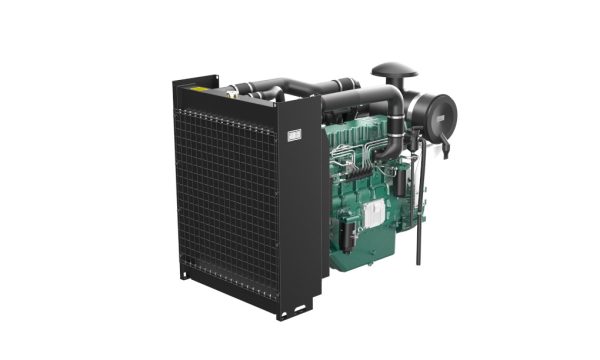

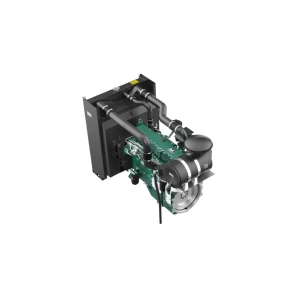

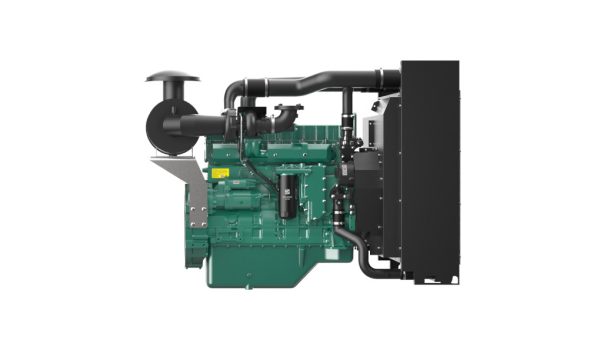

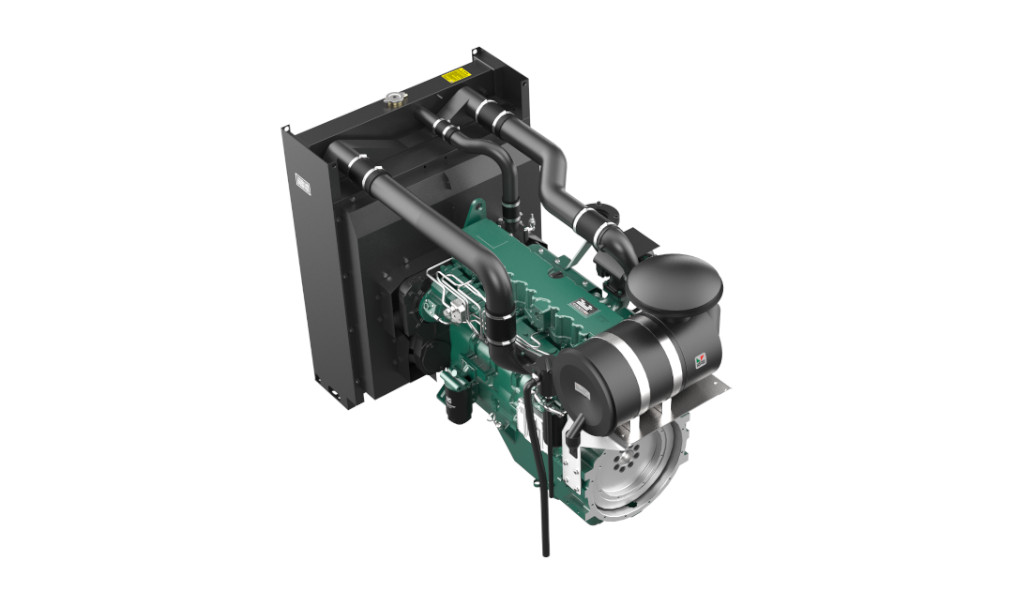

LP689EG3 Generator
The Lister Petter LP689EG3 Generator is a powerful 78-308kW diesel engine from the durable Venus Max series. With Denso ECU-controlled common rail injection, turbocharging, easy maintenance, robust design for extreme conditions, and Stage III emissions compliance, it delivers reliable high-output performance.
Venus Max LP689EG3 Generator Overview
The VENUS MAX LP689EG3 Generator produce power in the 78kW to 308kW range. The robust and versatile engine offers Denso high-pressure common rail fuel injection with ECU control. High flow oil filters, and cyclone air filter system ensure the engine is always in prime condition. The Venus Max range complies with Stage III emission regulations.
Switchable dual-frequency of 1500 – 78kW – 308kW Denso fuel system.
Low maintenance – 20,000 hours between overhauls
Dependable – high strength cast iron block, easy cold starting down to minus 40ºC, at altitudes up to 4500m
Denso ECU-controlled common rail injection
Turbocharged, air-to-air intercooler.
Venus Max LP689EG3 Generator Specs
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 6 L |
| Bore | 114 mm |
| Stroke | 114 mm |
| Displacement | 8.9 litres |
| Injection | Denso Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-5-3-6-4-2 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 1024 kg |
| Length | 1823 mm |
| Width | 951 mm |
| Height | 1366 mm |
