LP612EG1 Engine

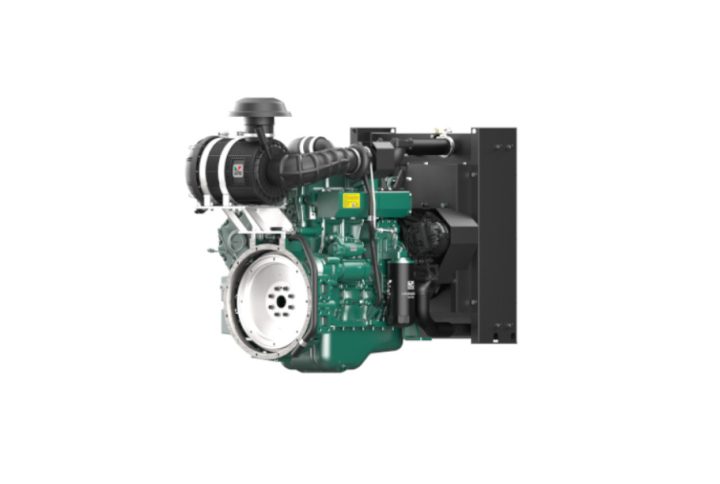

Experience powerful and reliable performance with the LP443G6 engine from Lister Petter. This 4-cylinder, direct-injection diesel engine offers up to 132kW of power at 1500 rpm, making it ideal for gen-sets and industrial applications. With dual 50Hz/60Hz operation, easy maintenance, and -40°C cold start capability, it delivers exceptional versatility and durability.
Venus Max LP612EG1 Engine Overview
Producing power in the 280kW to 490kW range, the VENUS MAX LP612EG1 Engine range operate at 1500rpm or 1800rpm. Overhead camshaft design guarantees high efficiency and low maintenance, while also meeting Stage III emissions regulations.
Fixed Speeds
1500 r/min
Maximum Power
1500 r/min—308kW
Injection
ECU
Bosch ECU-controlled common rail fuel injection – 280kW – 490kW Bosch fuel injection
Low temperature, high altitude capability; efficient cold starts at minus 40ºC, no altitude derating up to 3000m
Efficient cooling at ambient temperatures up to 50ºC,
Low operating costs with easy maintenance; deep sump allows 500-800 hours of operation without service, and 20,000 hours before overhaul (depending on operating conditions).
Venus Max LP612EG1 Engine Specs
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 6 L |
| Bore | 128 mm |
| Stroke | 153 mm |
| Displacement | 11.8 litres |
| Injection | BOSCH Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-5-3-6-4-2 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 1336 kg |
| Length | 2248 mm |
| Width | 1155 mm |
| Height | 1482 mm |
