LP613EG3
Producing power in the 280kW to 490kW range, the VENUS MAX LP613EG3 engine operate at 1500rpm. Overhead camshaft design guarantees high efficiency and low maintenance, while also meeting Stage III emissions regulations.

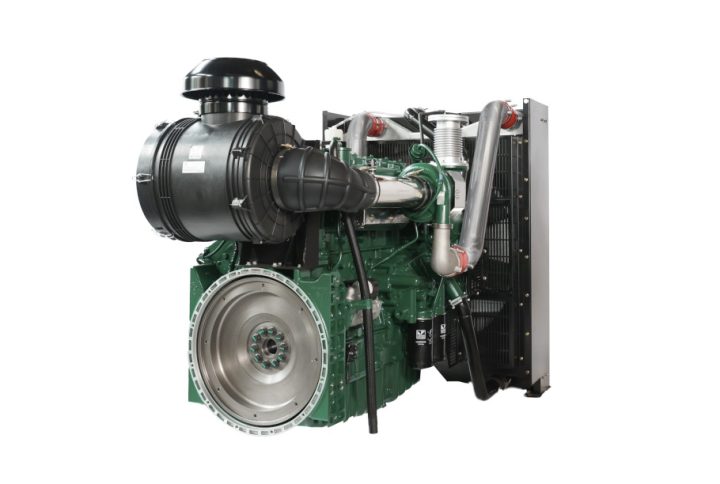

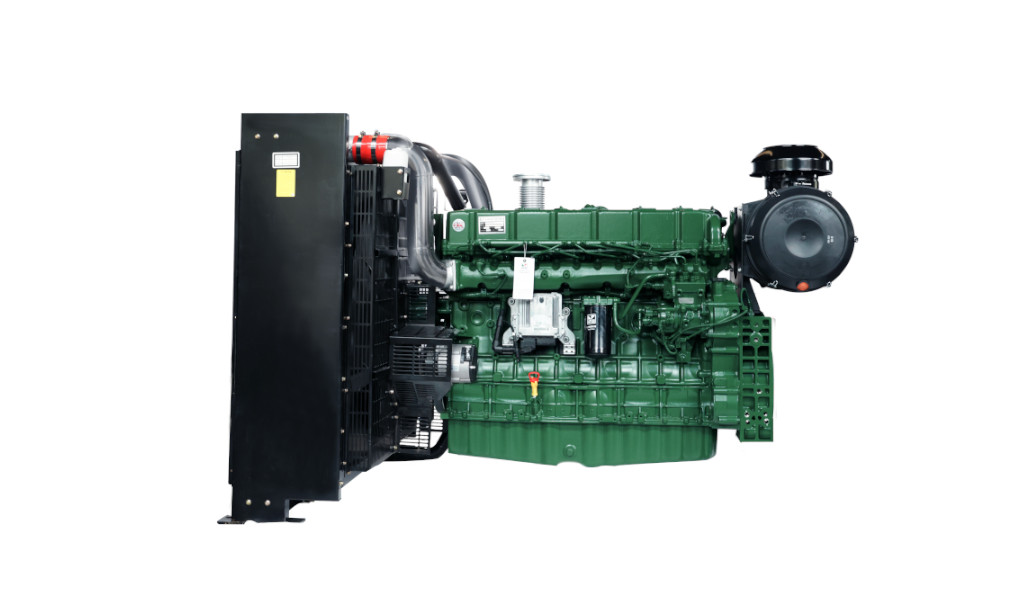

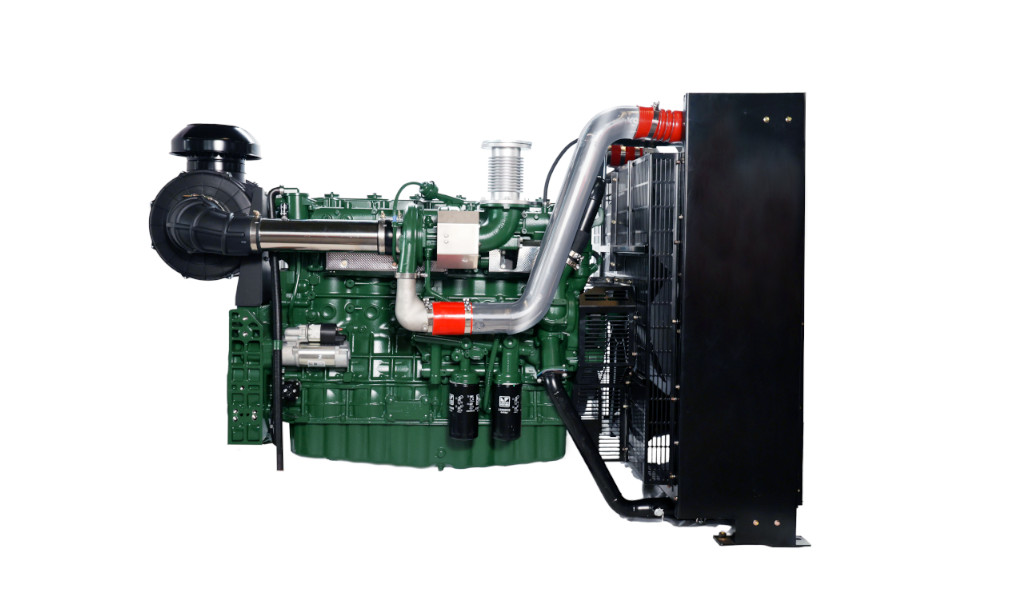

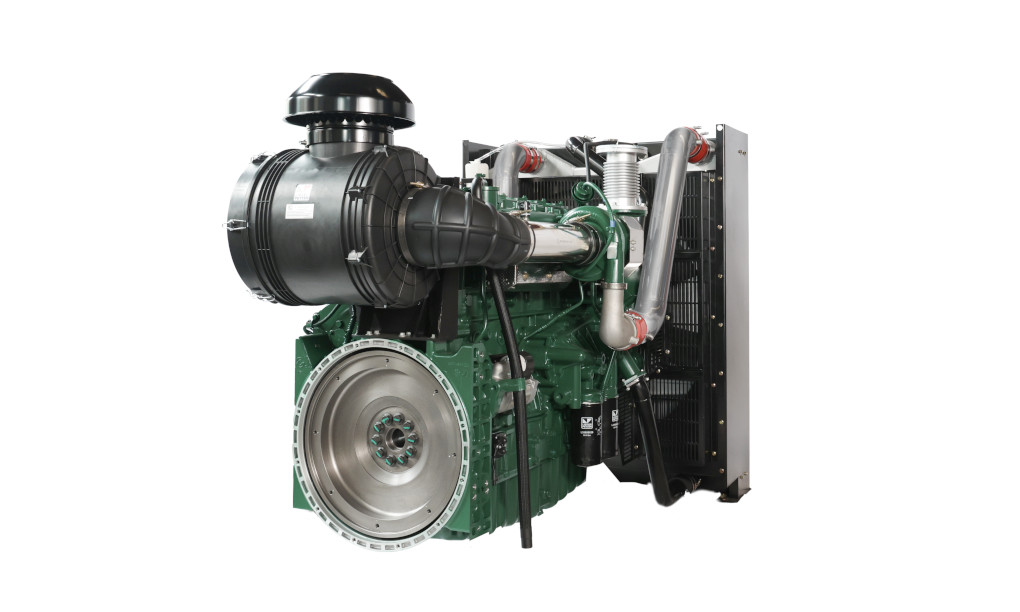

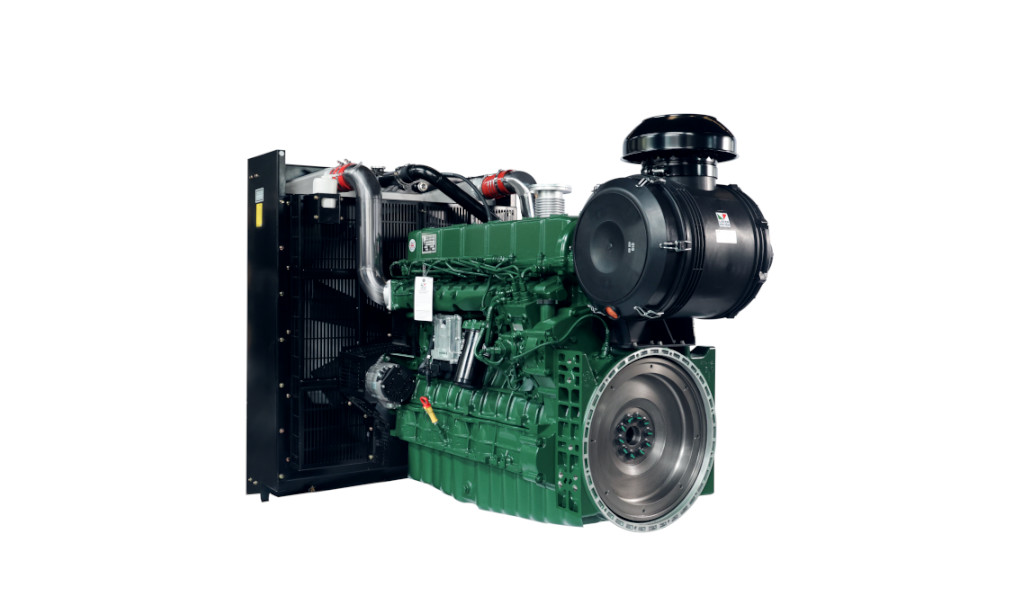

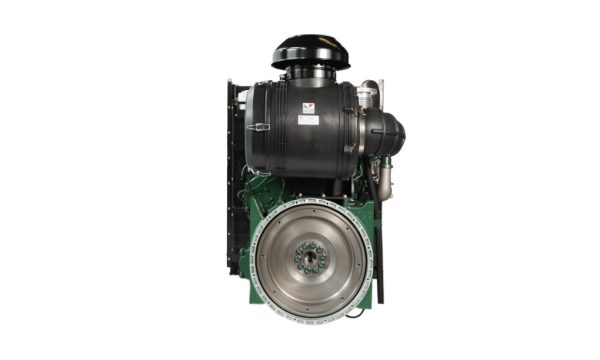

Venus Max LP613EG3 Engine Overview
Producing power in the 280kW to 490kW range, the VENUS MAX LP613EG3 engines operate at 1500rpm. Overhead camshaft design guarantees high efficiency and low maintenance, while also meeting Stage III emissions regulations.
280kW – 490kW Bosch fuel injection
Bosch ECU-controlled common rail fuel injection
Low temperature, high altitude capability; efficient cold starts at minus 40ºC, no altitude derating up to 3000m
Efficient cooling at ambient temperatures up to 50ºC,
Low operating costs with easy maintenance; deep sump allows 500-800 hours of operation without service, and 20,000 hours before overhaul (depending on operating conditions).
Venus Max LP613EG3 Engine Specs
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 6 L |
| Bore | 130 mm |
| Stroke | 161 mm |
| Displacement | 12.8 litres |
| Injection | BOSCH Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-5-3-6-4-2 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 1354 kg |
| Length | 2248 mm |
| Width | 1155 mm |
| Height | 1482 mm |
