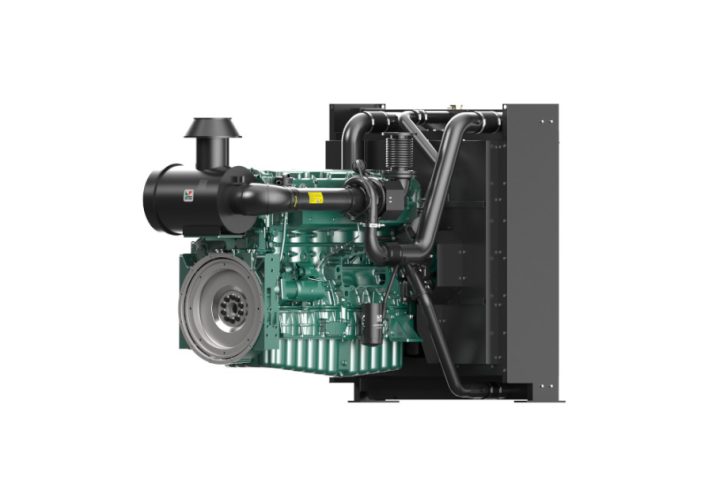

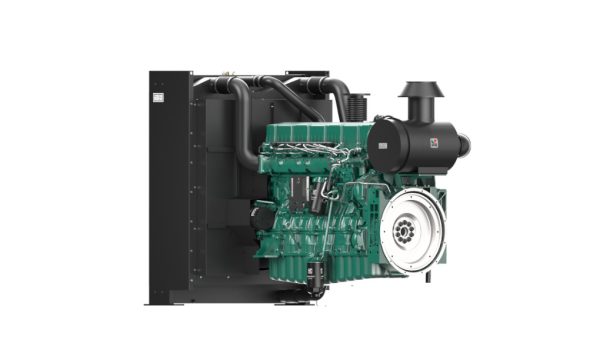

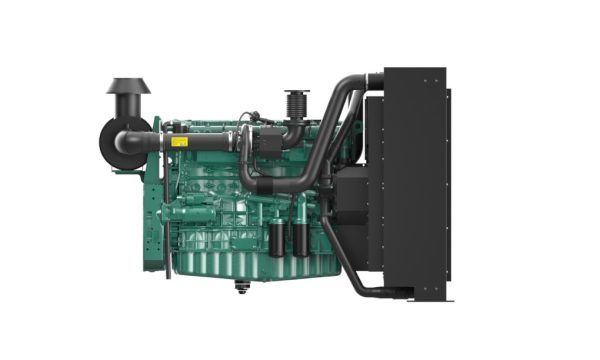

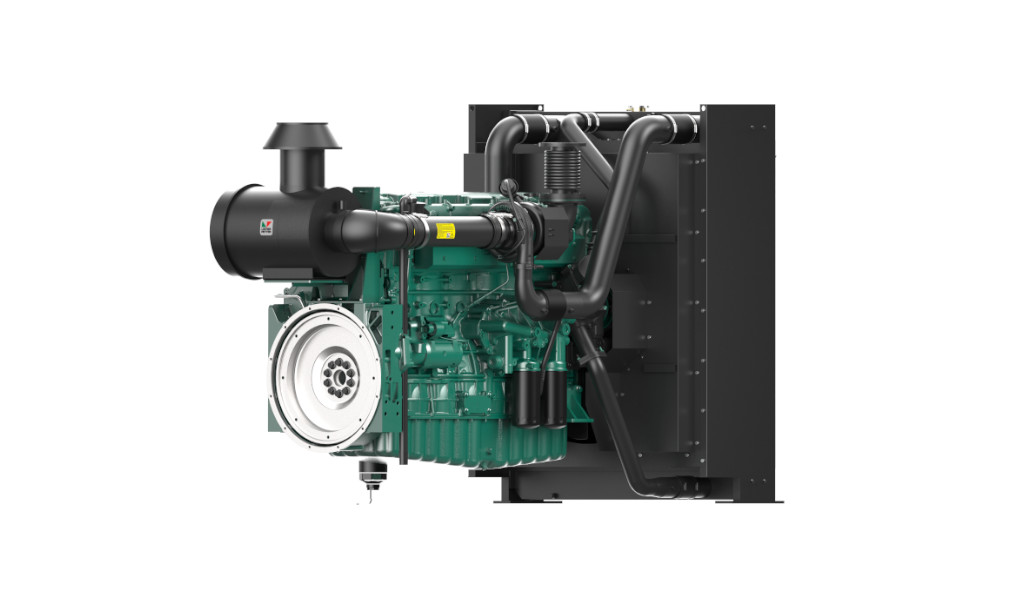

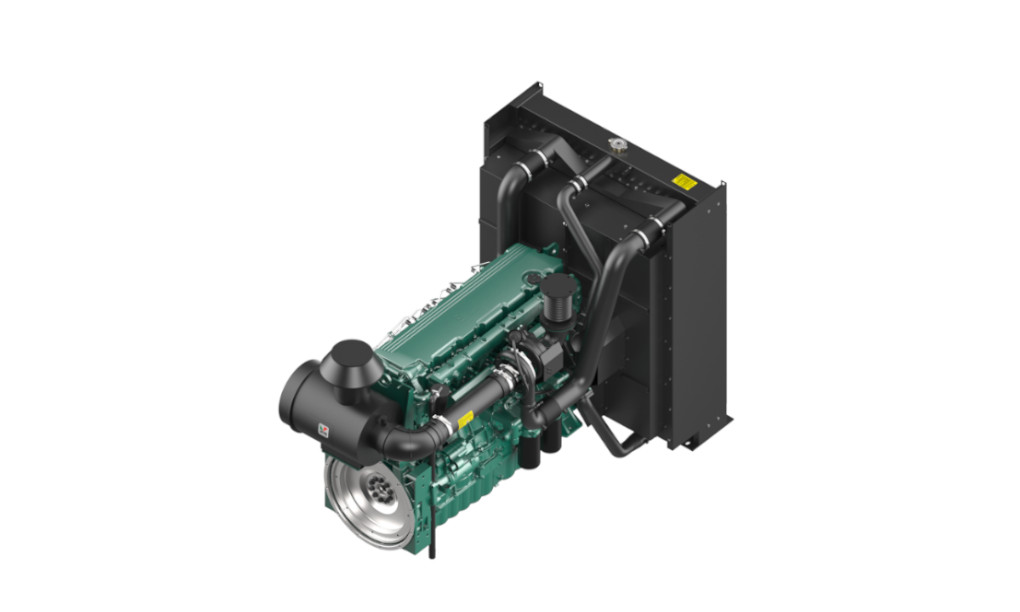

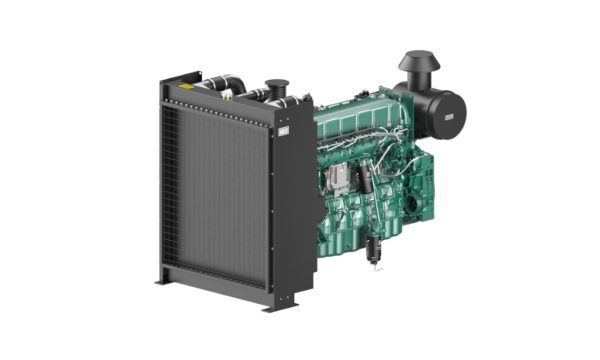

Venus Max LP612EG3 Engine
The powerful Venus Max LP612EG3 Engine from Lister Petter. This 6-cylinder, 11.8L diesel delivers 280-490kW with Bosch common rail injection and ECU control. Efficient cooling up to 50°C, cold starts to -40°C, low maintenance with 500-800 hour service intervals.
Venus Max LP612EG3 Engine Overview
Producing power in the 280kW to 490kW range, the VENUS MAX range of engines operate at 1500rpm or 1800rpm. Overhead camshaft design guarantees high efficiency and low maintenance, while also meeting Stage III emissions regulations.
Bosch ECU-controlled common rail fuel injection – 280kW – 490kW Bosch fuel injection
Low temperature, high altitude capability; efficient cold starts at minus 40ºC, no altitude derating up to 3000m
Efficient cooling at ambient temperatures up to 50ºC,
Low operating costs with easy maintenance; deep sump allows 500-800 hours operation without service, and 20,000 hours before overhaul (depending on operating conditions).
Venus Max LP612EG3 Engine Specs
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 6 L |
| Bore | 128 mm |
| Stroke | 153 mm |
| Displacement | 11.8 litres |
| Injection | BOSCH Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-5-3-6-4-2 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 1336 kg |
| Length | 2248 mm |
| Width | 1155 mm |
| Height | 1482 mm |
