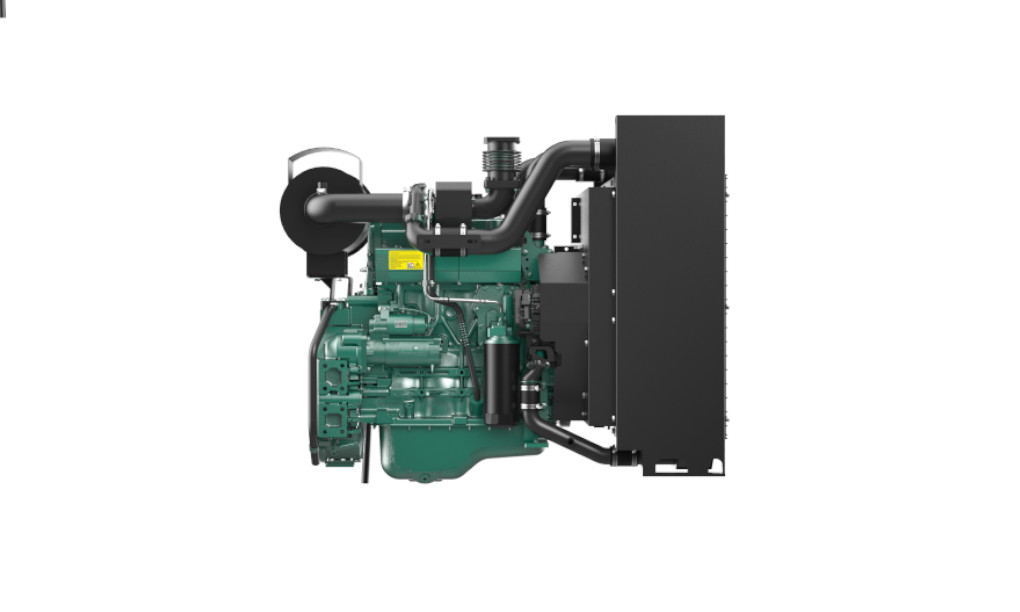

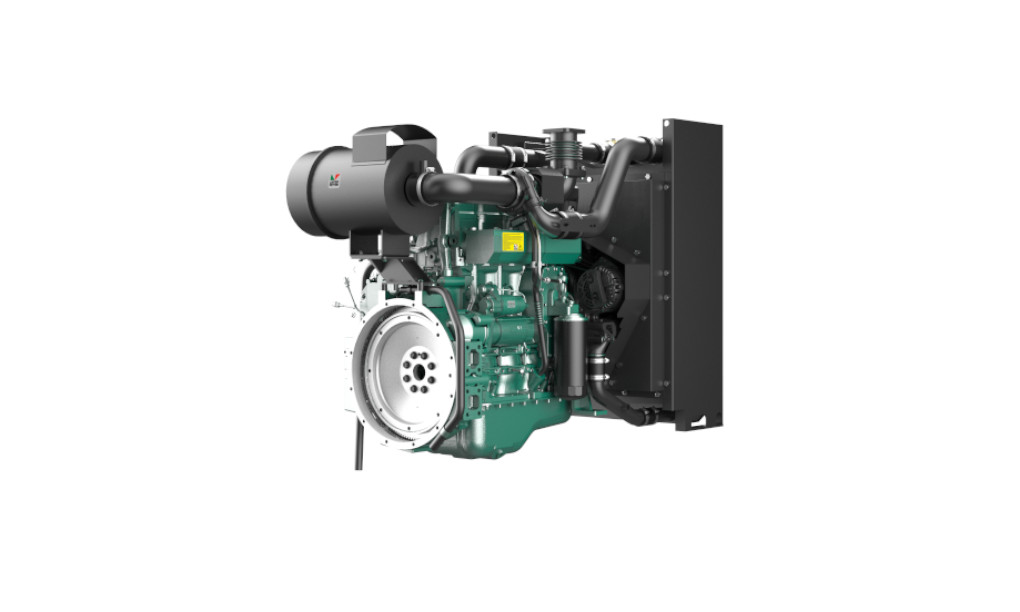

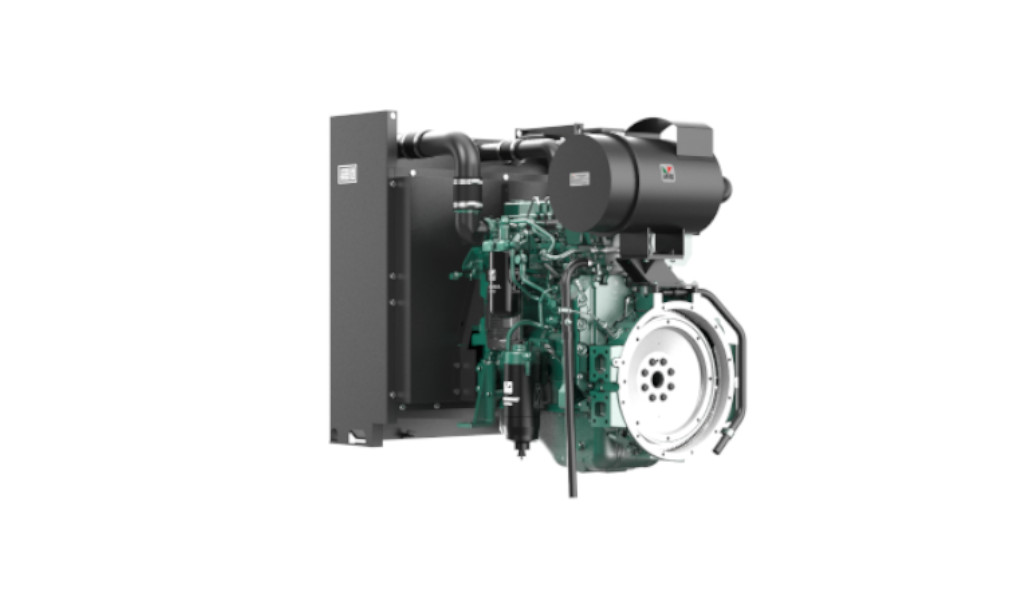

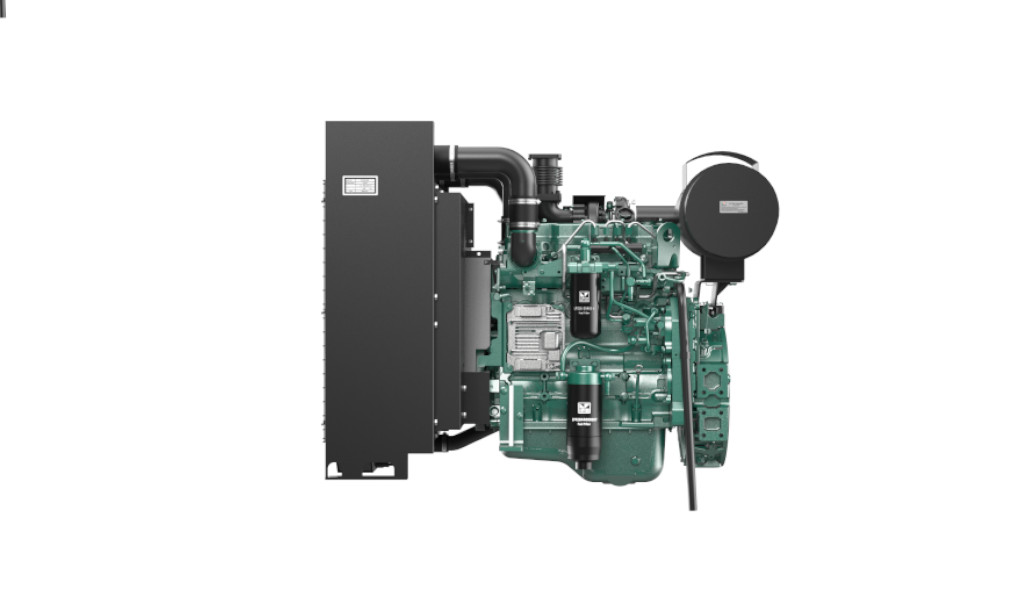

LP443EG5 Diesel Engine
Discover the powerful and reliable LP443EG5 diesel engine from Lister Petter’s Venus Max series. Offering a maximum power output of 116kW, this Stage III compliant generator features a Denso high-pressure common rail fuel system with ECU control. With switchable dual frequency, low maintenance requirements, and dependable performance even in harsh conditions, it is the ideal choice for a range of applications.
Venus Max LP443EG5 Diesel Engine Overview
The VENUS MAX engines produce power in the 78kW to 308kW range. The robust and versatile engine offers Denso high-pressure common rail fuel injection with ECU control. High flow oil filters, and cyclone air filter system ensure the engine is always in prime condition. The Venus Max range complies with Stage III emission regulations.
Fixed Speeds
1500 r/min
Maximum Power
1500 r/min—117kW
Switchable dual-frequency of 1500 or 1800rpm – 78kW – 308kW Denso fuel system.
Low maintenance – 20,000 hours between overhauls
Dependable – high strength cast iron block, easy cold starting down to minus 40ºC, at altitudes up to 4500m
Denso ECU-controlled common rail injection
Venus Max LP443EG5 Diesel Engine Specs
| Cooling System | Liquid |
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1500 r/min |
| Number of Cylinders | 4L |
| Bore | 105 mm |
| Stroke | 124 mm |
| Displacement | 4.3 litres |
| Injection | Denso Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-3-4-2 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 534 kg |
| Length | 1324 mm |
| Width | 802 mm |
| Height | 1089 mm |
